Underground Distribution Equipment
Check out some of my models below: Great as desk ornaments, gifts, learning tools!

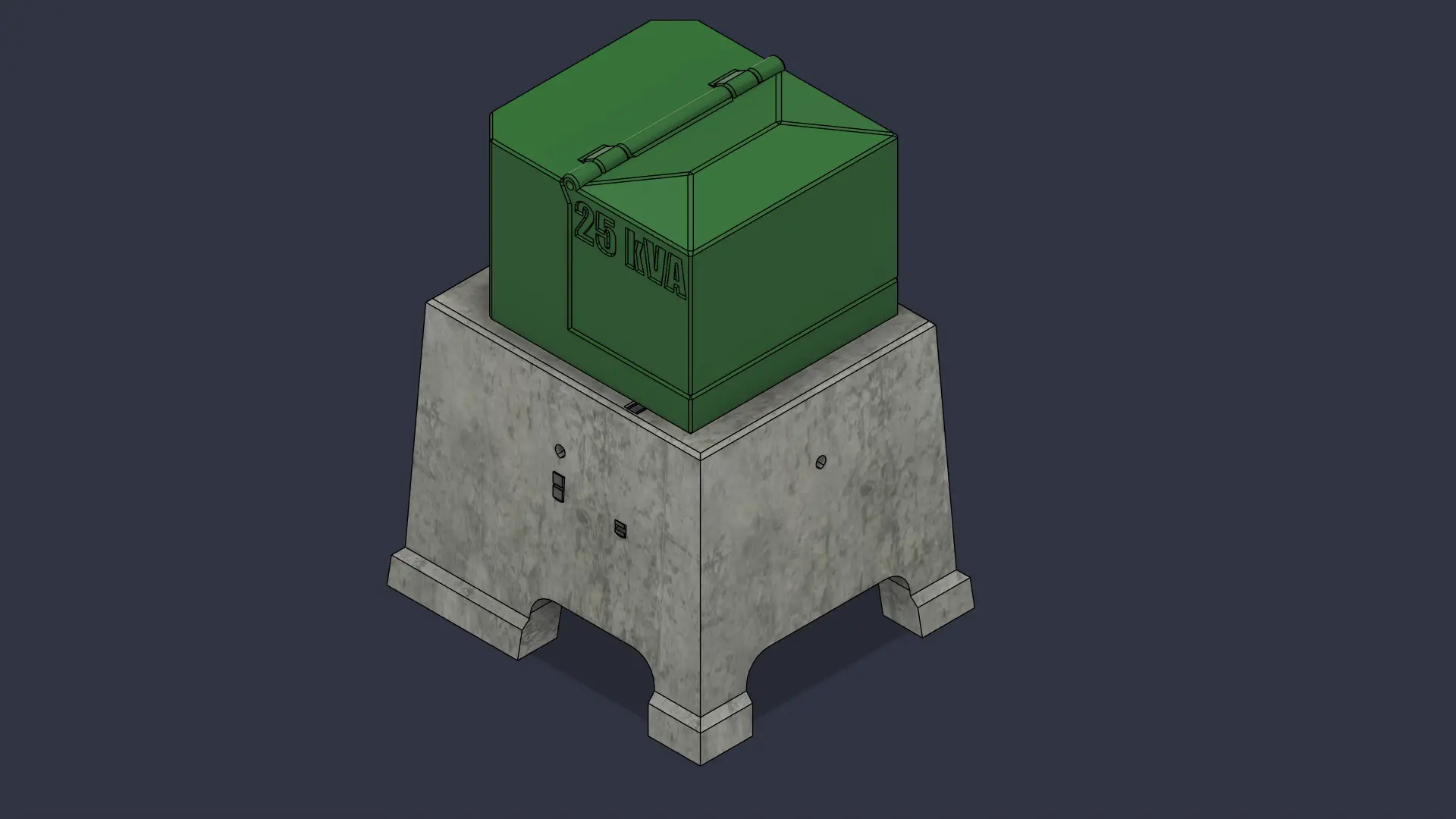

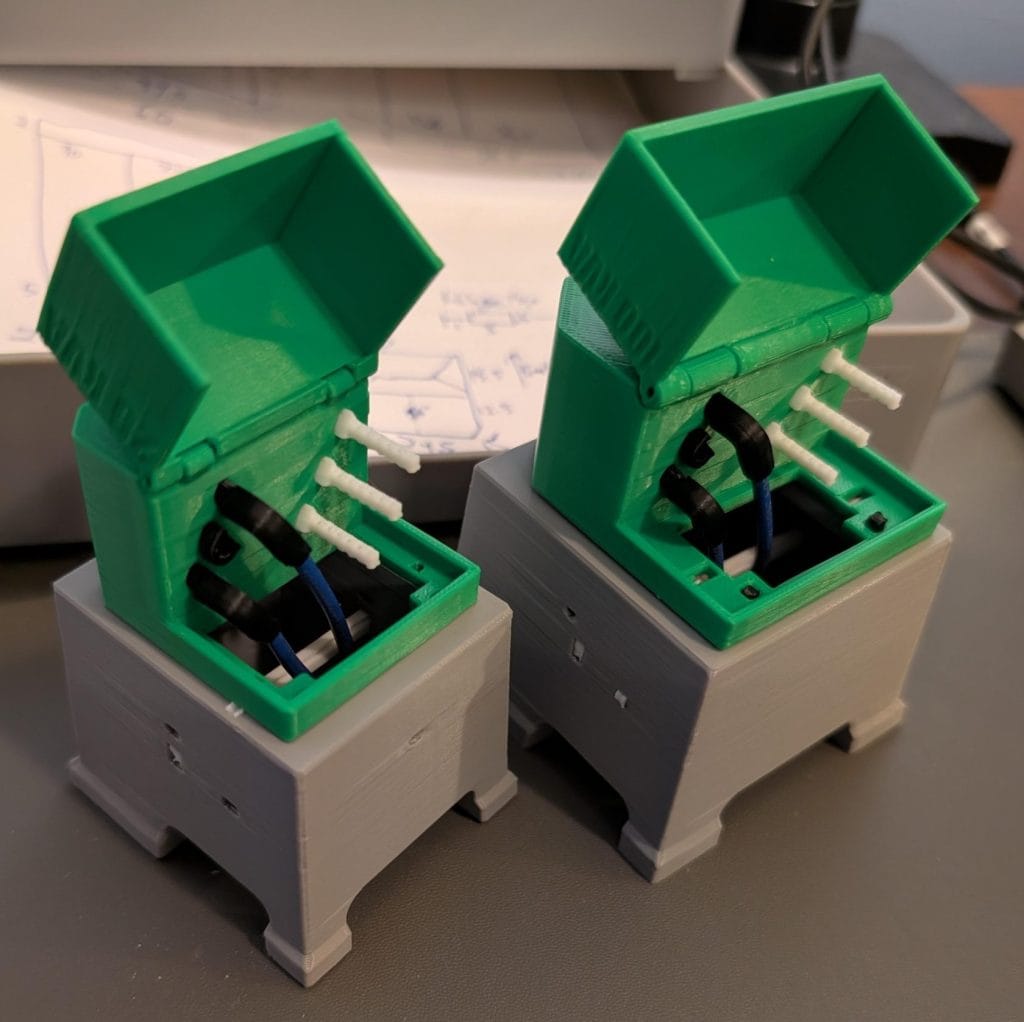

Single Phase Transformers
Hinged door, primary elbows and secondary connector bars (6 and 8 position), parking bushing

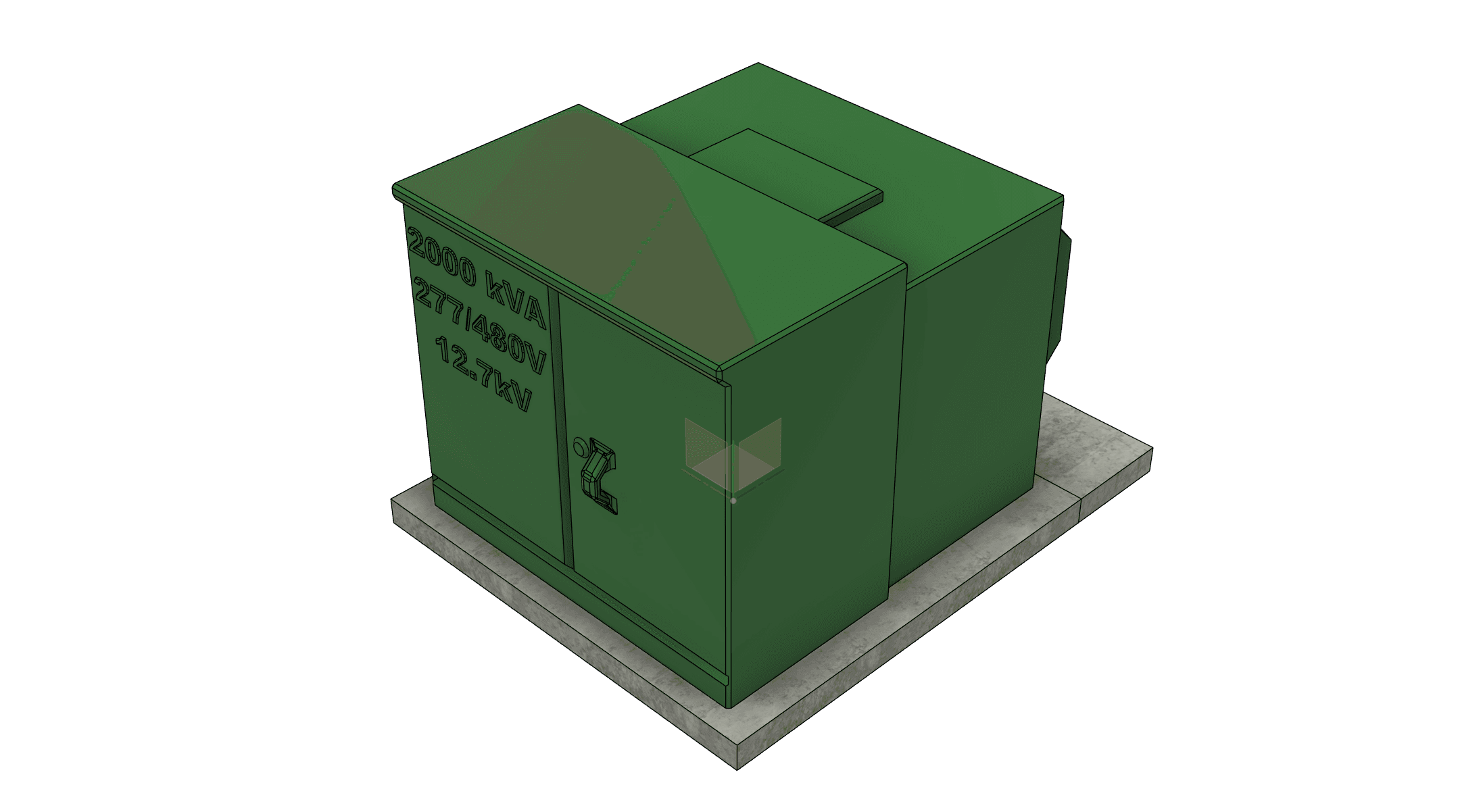

Three Phase Transformers
Working hinged doors, separate primary and secondary areas, heat fins

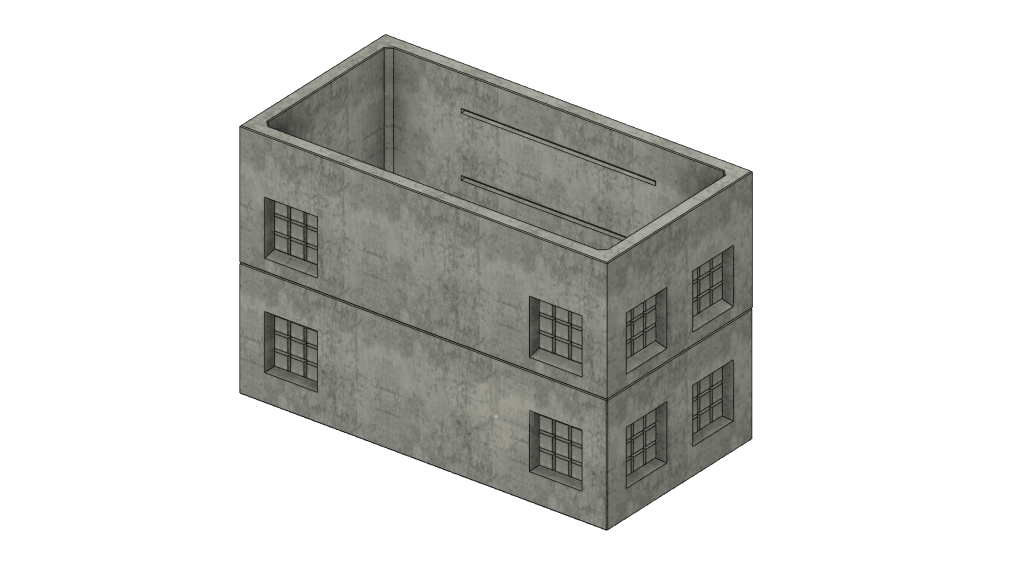

Vaults
Display knockout locations and snap fitting lids if desired.
Conduit
Use straw and cut to desired length. Fit together with elbows and connecting pieces.
Transparent Pricing and Professional Rates
Review our clear pricing structure for off the shelf sets of distribution models or reach out about custom designed pieces.
Individual Pieces
Starts
$10
Any of my items available individually with a bulk discount for ordering more than 5 per item.
Full Set
Starts
$400
1:20 scale full set. Includes handholes, pedestals, 1PH and 3PH transformers, junction boxes (200A and 600A), padmounted and submersible switches, split risers, conduit and more.
Custom Pieces
Starts
Free Consultation
Examples: Years of service, part numbers, company name, retirement date, magnet alignment.
Explore Precision 3D Models
This section presents detailed prototypes and designs that illustrate how Gavin Snyder expertly applies CAD drafting and electrical system design.
Many Scales Available
Default is 1:20 but I can provide anywhere from 1:20 down to 1:160 (model train scales O, HO, and N available). Smaller scales than 1:20 might lose some details.
Accessories
Hinged doors, swappable connector bars, primary elbows with wire, snap ins to fit minipad vaults and concrete pads, magnet alignment, screw together pieces, and more.
Meticulously Crafted 3D Models
This is the third use case description, showcasing its ability to optimize technical workflows and contribute to better engineering outcomes in practical scenarios.
